Sharp FO-2080 Spécifications Page 55
- Page / 180
- Table des matières
- MARQUE LIVRES
Noté. / 5. Basé sur avis des utilisateurs
No.
Parts
Model Note
Name Type
Connector type
(Type/pin no.)
Function/
operation
1 Printer
interface
IEE1284 parallel
interface
Anfenor 36 pin AL-840 Allows connection with two personal
computers. Printer models only.
2 LINE jack Used to connect with
the TEL line.
3 TEL jack Used to connect with
the external TEL line.

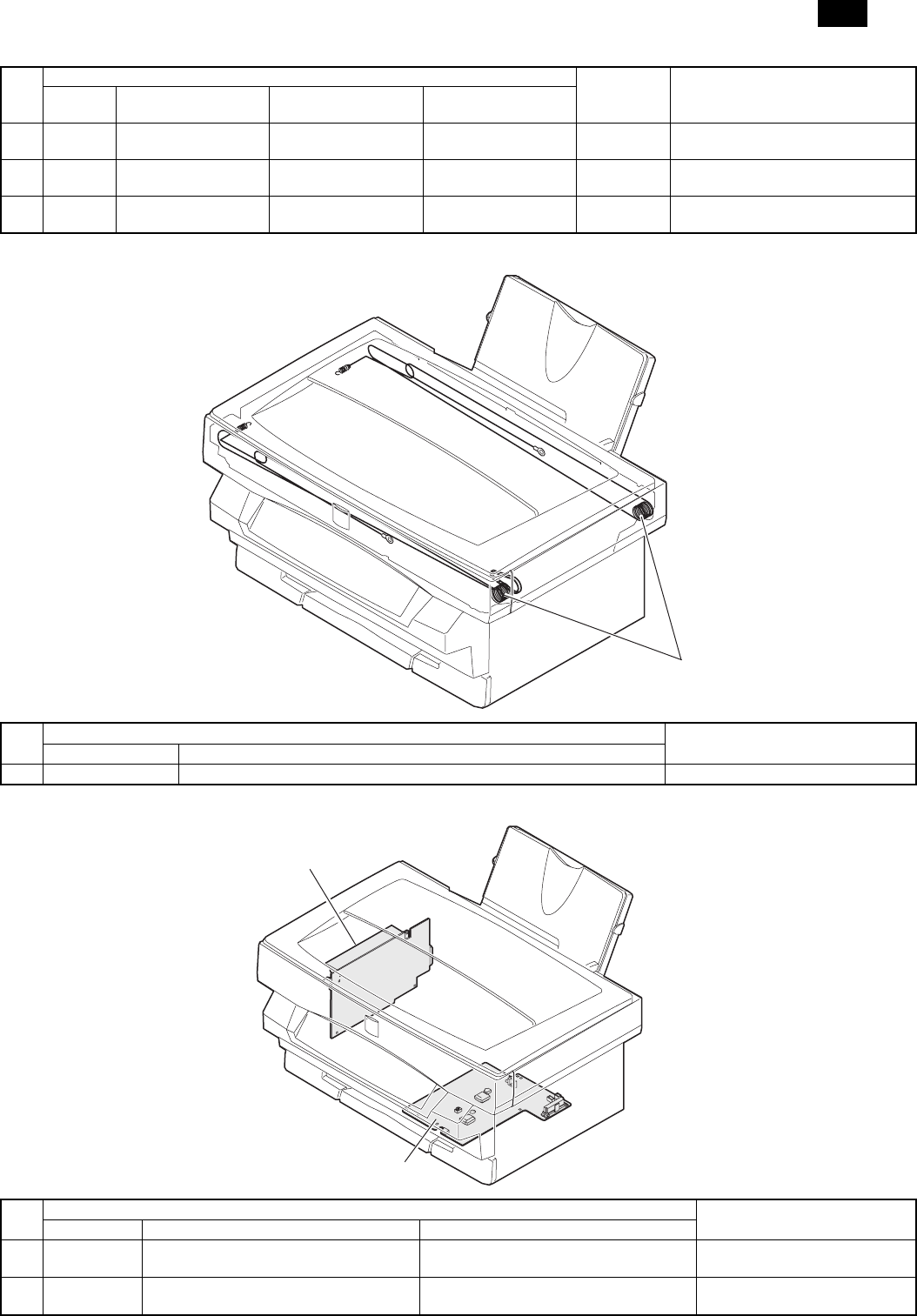

(9) Belt, wire
No.
Parts
Note
Name Function/operation
1 Scanner drive wire Transmits the scanner motor drive power to the scanner unit.
(10) Power
No.
Parts
Note
Name Specification ∗ Function/operation
1 Power unit DC +24V 2.0A/DC +5V 1.1A/DC +12V
0.13A/DC +3.3V 0.25A
Outputs the DC power. Drives the heater
lamp. Outputs the power detection signal.
The voltage specification differs
depending on the destination.
2 High voltage
power unit
Main charger voltage, transfer charger
voltage, developing bias voltage
The high voltage power output. (Supplies
power to the image process section.)
1)
1)
2)
FO-3800M
5 – 23
