9871 Tenth Edition 3-11

Operating in Automated Mode

3. Remove the CAP magazines from the LSM door. Lift the magazines up

approximately 25.4 mm. (1 in.) and pull them out, as shown in Figure 3-7.

Note: You can also add cartridges directly to the magazine cells without

removing the magazines from the CAP.

4. Place a cartridge into a magazine cell as shown in Figure 3-8 on page 3-12.

Note: Insert cartridges so they lie flat, with the customer label on top and

the volume serial number (VOLSER) facing you as shown in

Figure 3-8 on page 3-12.

5. Continue until all the cartridges have been placed in the magazines, or until

the magazines are full.

6. Place the magazines back into the CAP.

Note: Make sure that a magazine is always placed into the bottom

magazine area. You do not need to replace the top magazines unless

you need them.

If only the bottom magazine is replaced, the status display for the

CAP on the LSM operator panel shows only the bottom magazine is

present. If only the top magazines are replaced in either the

standard or optional CAP, the status display for the CAPs shows that

no magazines are present, and the robot does not attempt to retrieve

a cartridge from the CAP.

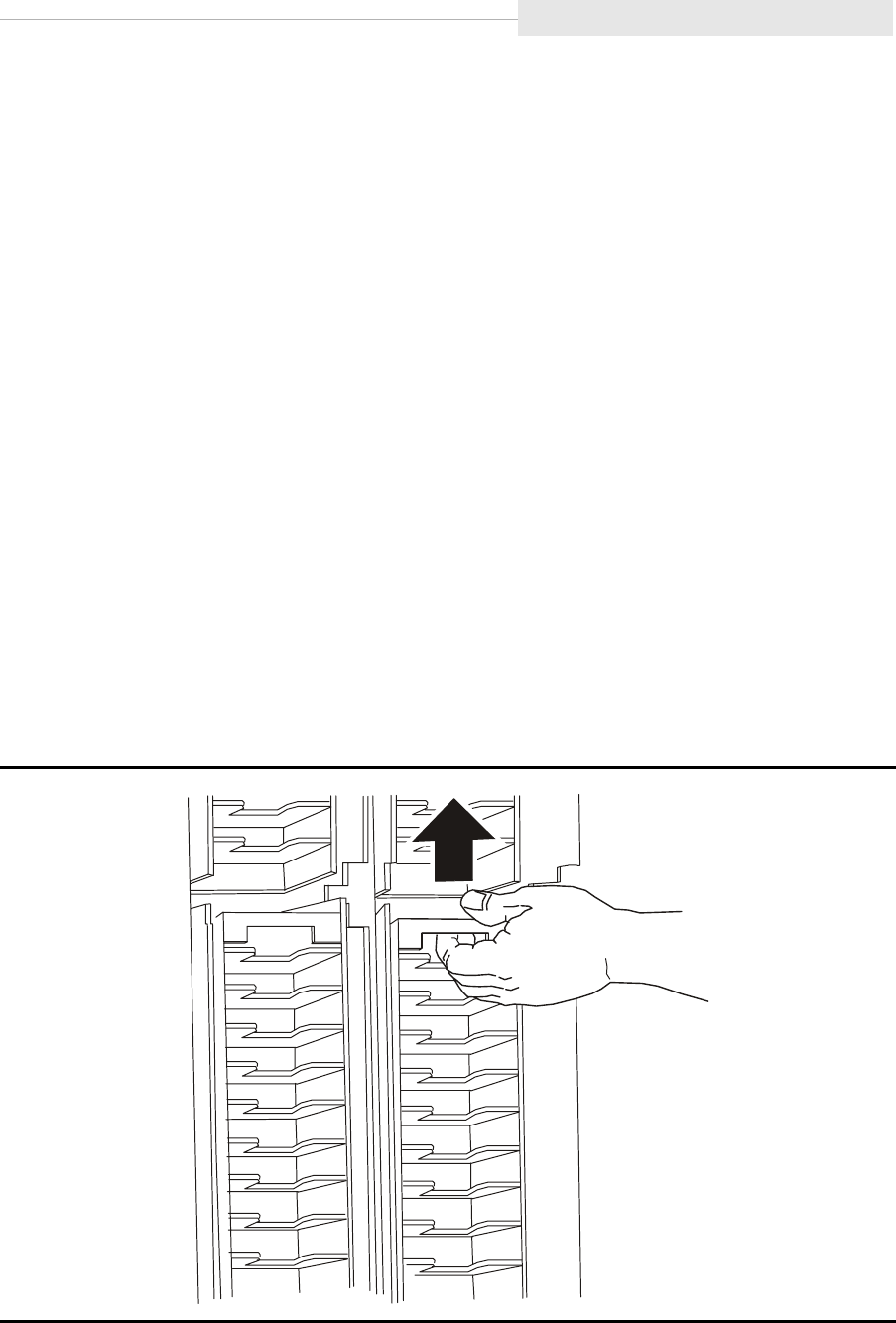

Figure 3-7. Removing Cartridge Access Port Magazines

E40251
