Emergency Power-Off Switches

■ Emergency Power-Off Switches

Note: Use the EPO switch only in an emergency.

In an emergency, you can remove power immediately from the LSM and LCU,

the LMU, and the cartridge subsystem.

LSM EPO Switches

The LSM has two red EPO switches. One switch is on the inside of the access

door, as shown in Figure 2-4; the other switch is on the LSM operator panel, as

shown in Figure 2-5 on page 2-16. Both switches remove power from all

moving parts of the robot and the LCU.

Note: A person accidentally inside the LSM during power on can use the

EPO

switch on the inside of the access door to immediately power off the

LSM.

See the instructions at “Emergency Powering off” on page 3-6.

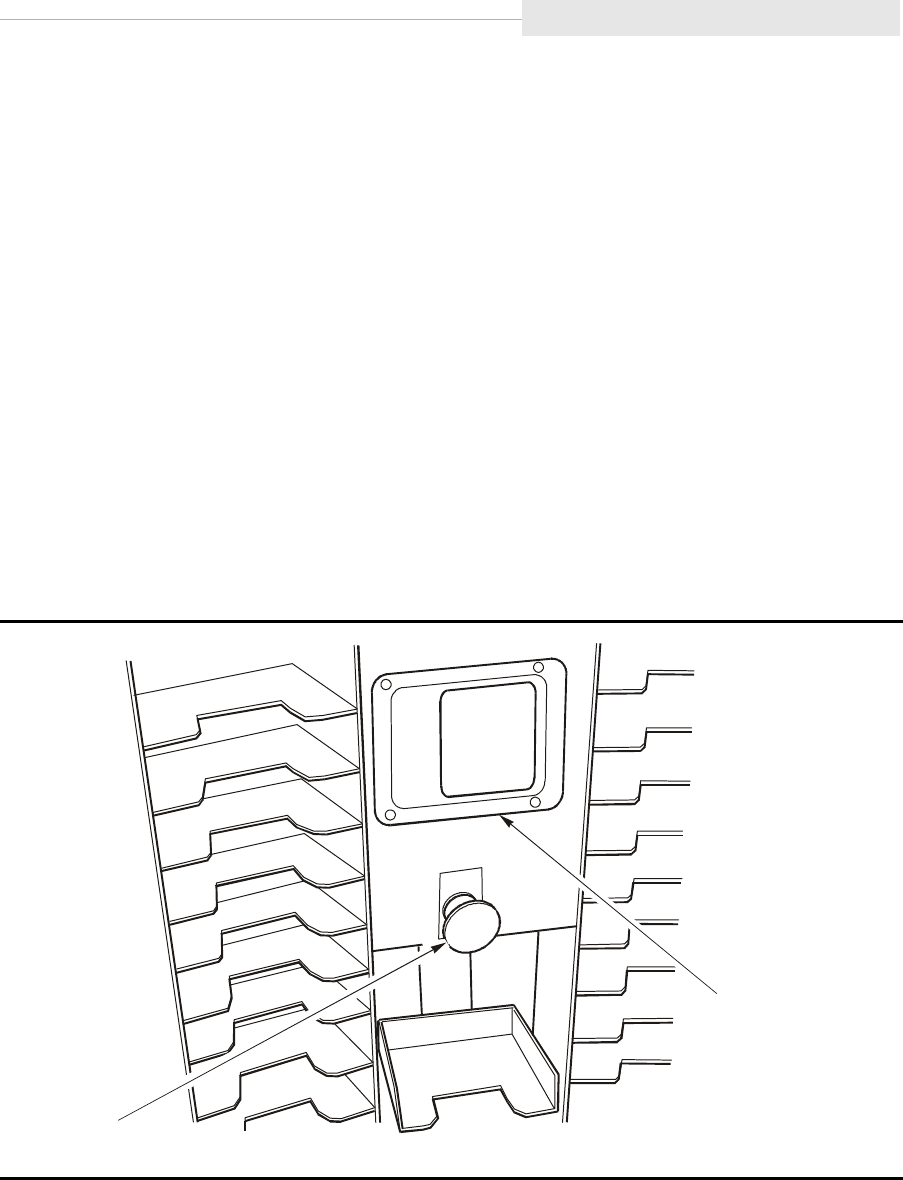

Figure 2-4. LSM Internal EPO Switch

E40250

EPO

SWITCH

LSM

ACCESS

DOOR

LATCH

(INSIDE

LSM)
