Modules
PC Camera Module 7 - 13
7
PC Camera Audio Setup
If you want to capture video & audio with your camera, it is necessary to setup the
audio recording options in Windows.
1. Go to the
Control Panel
.
2.
Click
Sound (Hardware and Sound) and
click
Recording (tab).
3. Right-click hold and release Microphone (VIA High Definition Audio) and make
sure the item is not disabled.
4. Double-click Microphone (or select Properties from the right-click menu).
5.
Click
Levels (tab), and adjust the Microphone and Microphone Boost sliders to
the level required.
6.
Click
OK and close the control panels.

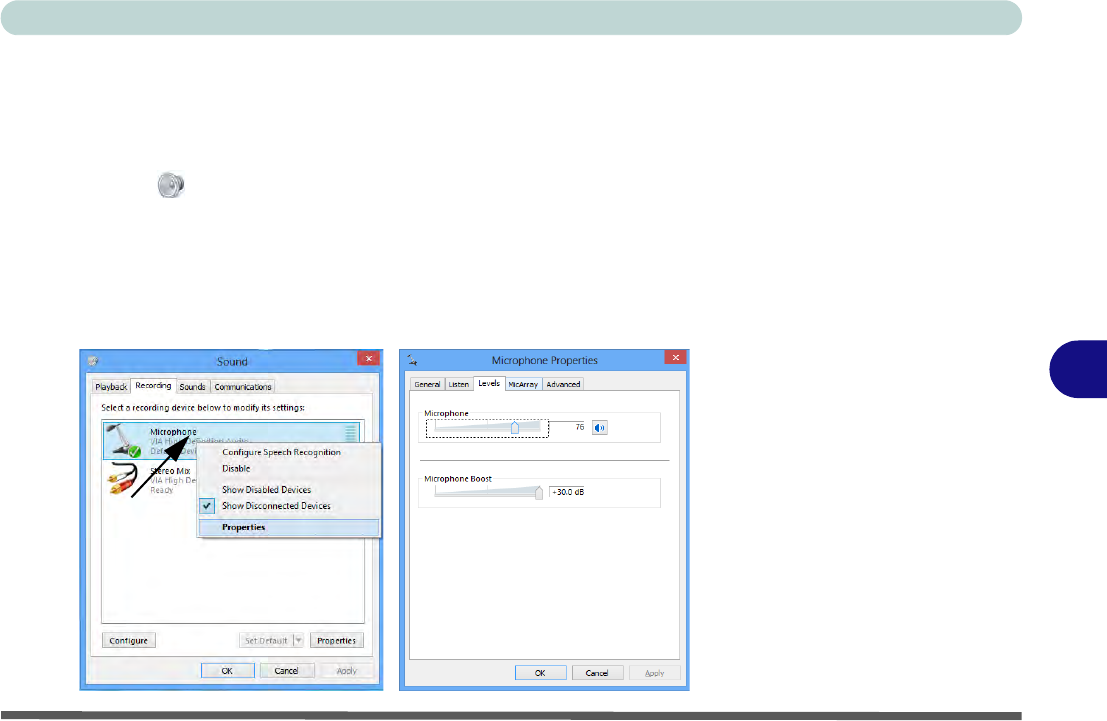

Figure 7 - 6
Audio Setup for PC
Camera
Right-click
