P/N 13999-002 Info Manual 7-37
Cirrus Design Section 7
SR20 Airplane Description
Engine Instruments
7,8
9
5,6
4
Serials 1005 thru 1581.
G
I
T
F
E
R
L
FUEL
Controls
LEGEND
1. Power Lever
2. Mixture Control
3. Friction Control
4. Tachometer
5. EGT
Alternate Air Control
Start / Ignition Switch
3
2
1
SR20_FM07_1603A
Serials
1005 thru 1336
:
Switch is located on the
left bolster panel.
6. CHT
7. Oil Temperature
8. Oil Pressure
9. Manifold Pressure

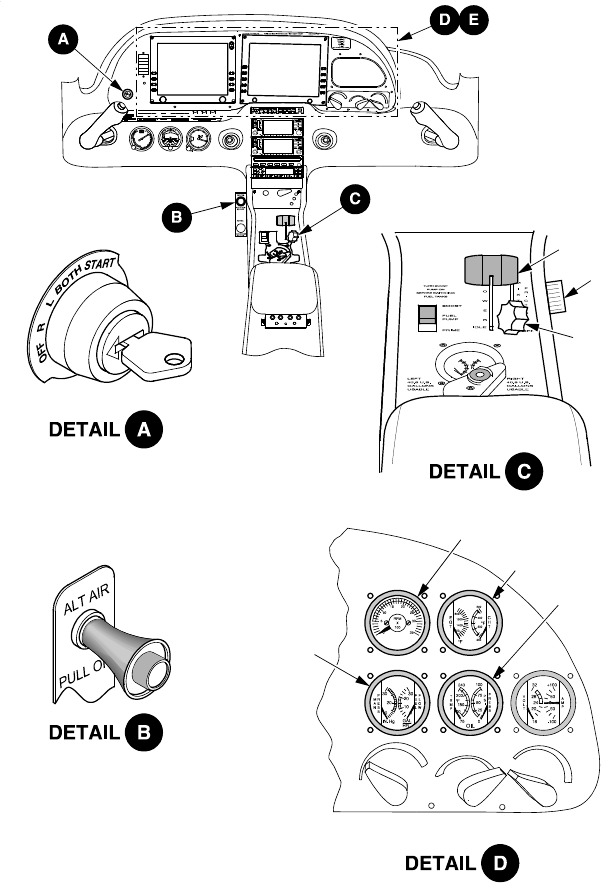

Figure 7-7
Engine Controls and Indicating
September 2011
