7-28 P/N 13999-002 Info Manual
Section 7 Cirrus Design
Airplane Description SR20

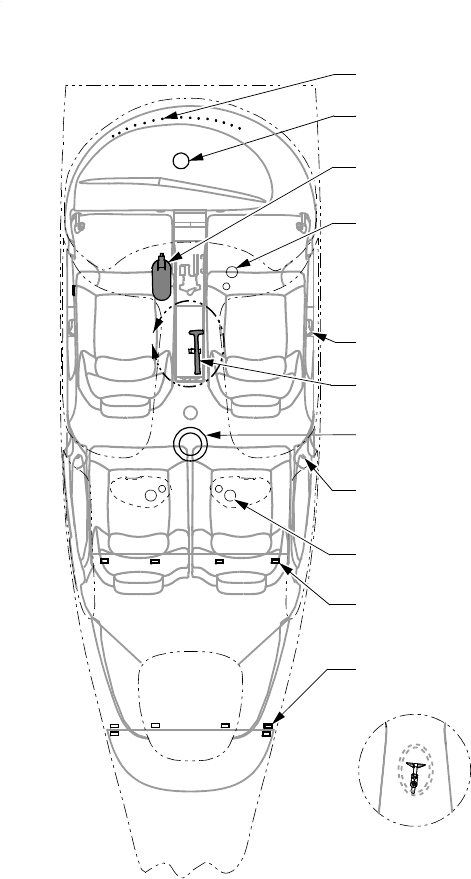

Figure 7-6
CABIN SPEAKER
EGRESS HAMMER
(IN ARMREST)
OVERHEAD LIGHT AND SWITCH
FIRE EXTINGUISHER
TIEDOWN LOOPS
(6 PLACES, AFT BULKHEAD)
TIEDOWN LOOPS
(4 PLACES, BAGGAGE FLOOR)
STALL WARNING HORN
DEFROST AIR OUTLETS
DOOR HANDLE
OVERHEAD LIGHT AND SWITCH
PASSENGER FRESH
AIR OUTLET
(UNDER PILOT'S SEAT)
SR20_FM07_1064
(OVERHEAD)
CAPS ACTIVATION T-HANDLE
DETAIL A
A
Cabin General Arrangement
September 2011
