<Ver. 2.1>

Four M8 nuts

* Secure the nut as close to the

root of the bolt as possible.

1. Install the Special eye bolt to the main body

of the plasma display, along with the M8 nut.

2. Tighten the nut with a spanner.

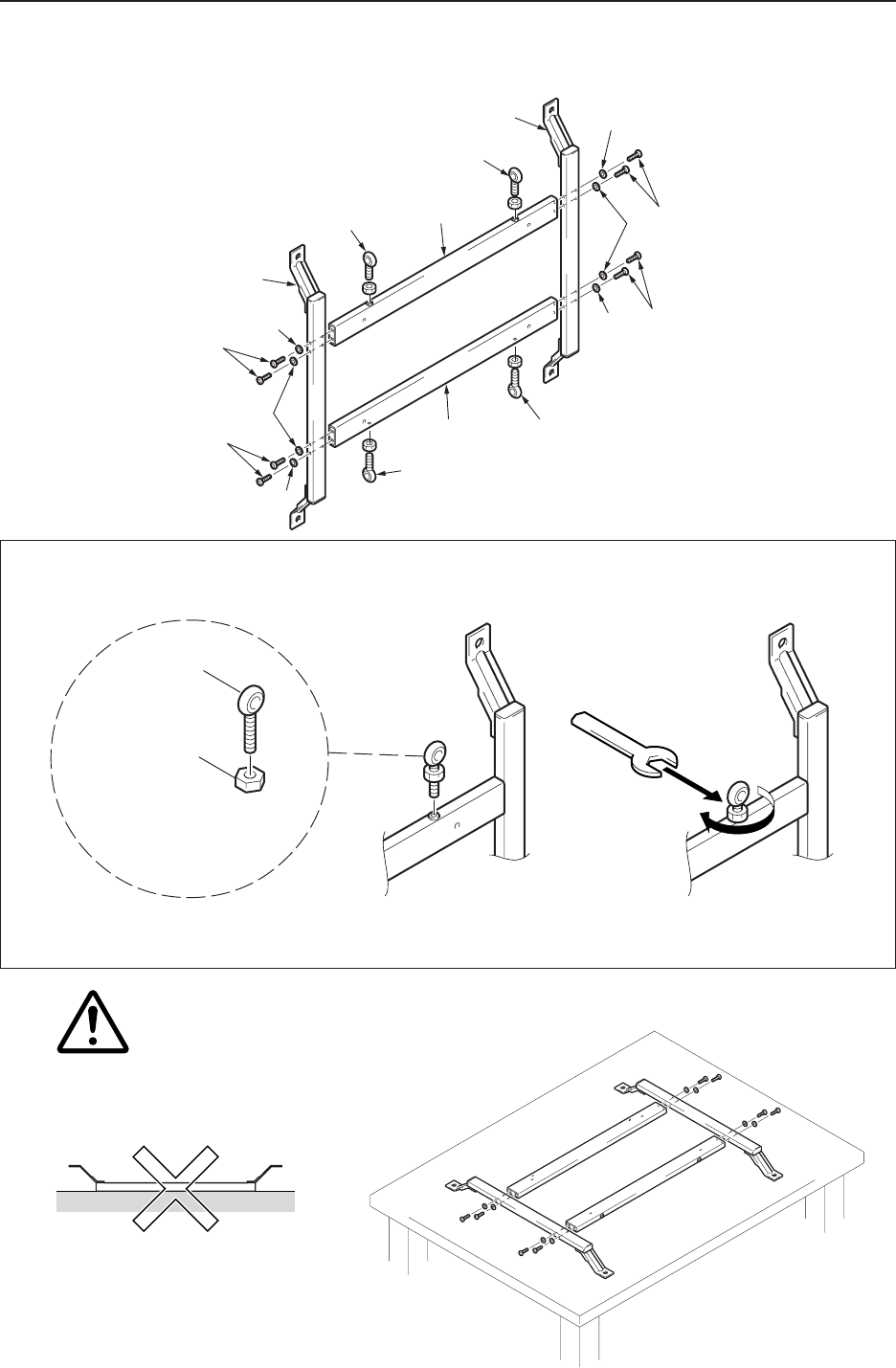

Mounting standard metal fixtures (PDK-4005)

2) Assembly procedure

1. Temporarily tighten the vertical frame (1) and the horizontal frame (2) by using the M5 plus/minus screw (5) and

the M5 wave washer (4).

Before screwing together the horizontal frame and

vertical frame, place the frames on a flat surface, as

shown, and confirm that the holes match up correctly.

Table or similar flat surface

When the frames are placed on a flat surface

as above, inserting bolts into the holes is

difficult.

Caution

When assembling the PDP bracket, install an M8 nut, as shown, to keep the Special eye bolt from loosening.

(This step is not described in the instruction manual.)
