Special installation (Installation under the floor (using the PDM-4001))

3.4.9 Installation under the floor (using the PDM-4001)

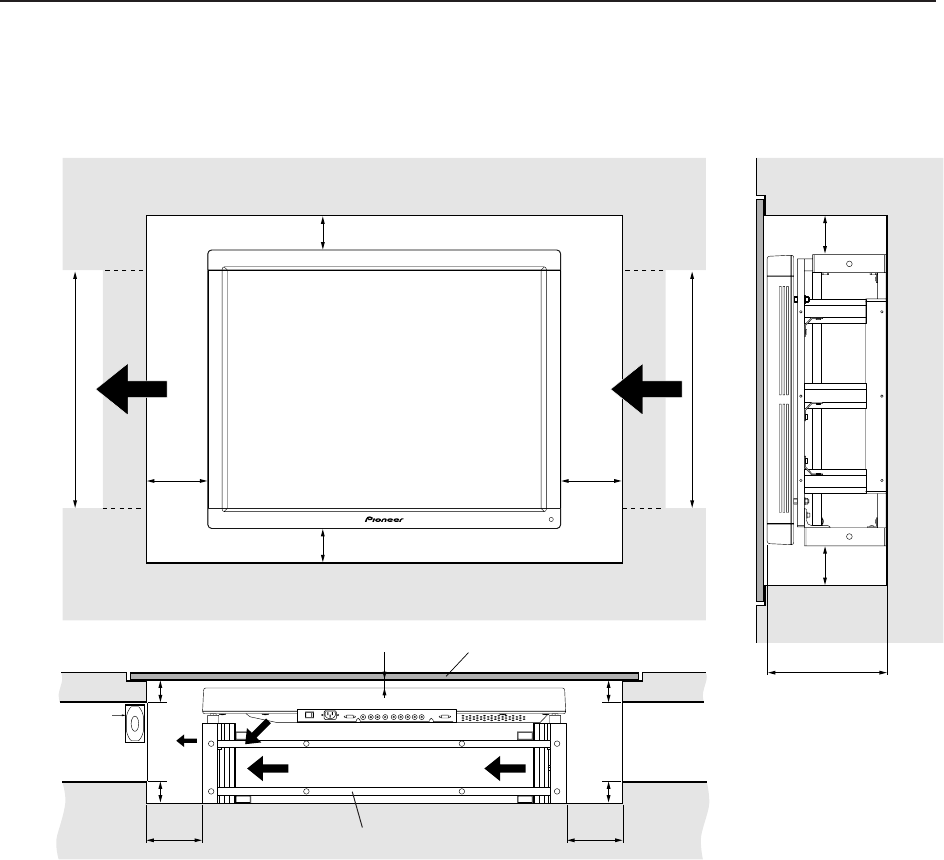

• If protective glass or similar material is used, the multi-installation fixture (PDM-4001) shown in the following figure is

very useful.

600 mm or more

Intake

Exhaust

Protective glass surface

| Looking in the direction of the arrow (see the next page)

If the display is used in the closed space, observe the following conditions in the above environment:

A ≥ 20 mm (clearance between the protective glass and PDP)

B ≥ 100 mm (clearance between the PDP and side wall)

C ≥ 50 mm (clearance between the PDP and side wall)

In the closed space, keep the temperature at 30 °C or less.

A + 50 mm

or less

60 mm

or less

Exhaust fan

Flow of air from the air conditioner

Intake port

Tempered glass, etc. (permeable)

Multi-installation fixture (PDM-4001)

291mm

A + 50 mm

or less

60 mm or

less

Exhaust port

600 mm or more

Floor

Exhaust
