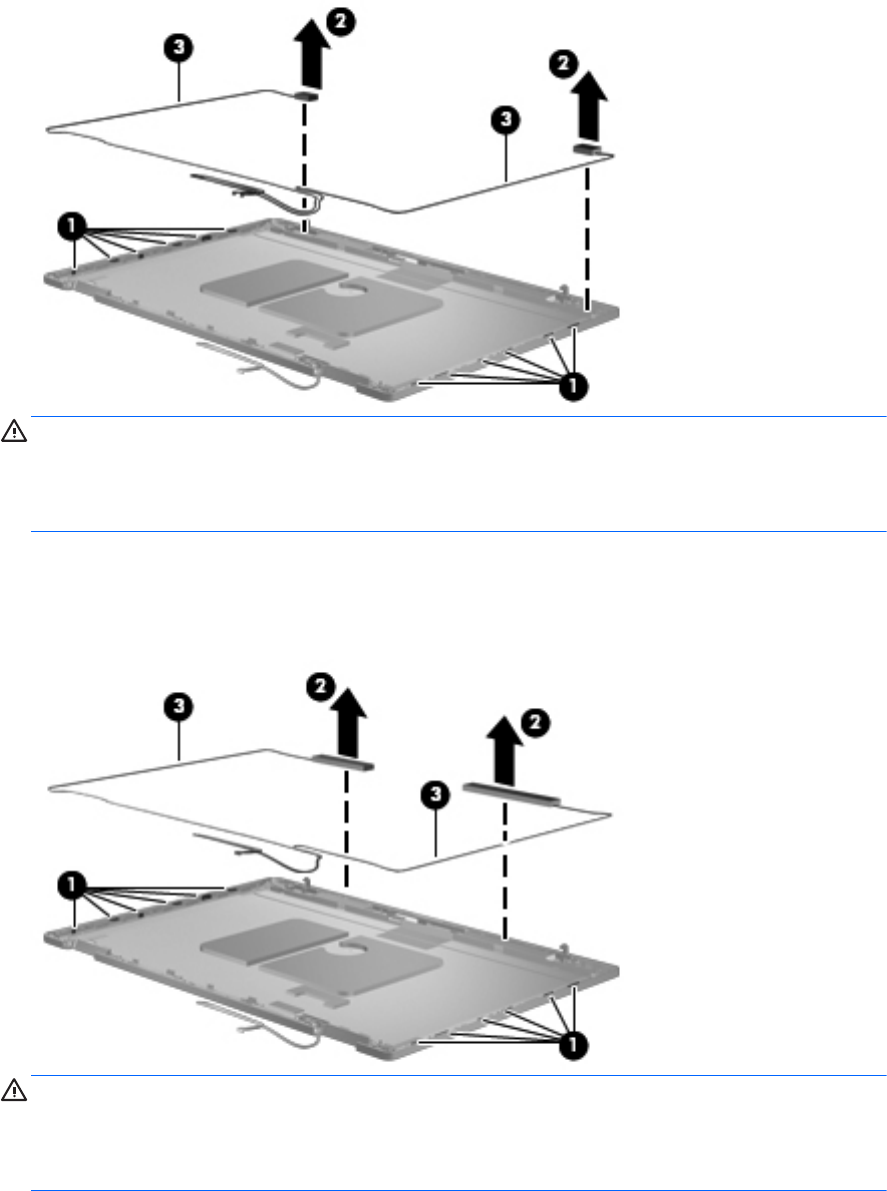

17. Lift the antennas (2) and cables (3) straight up out of the display enclosure.

CAUTION: When installing the display assembly, be sure that the wireless antenna cables are

routed and arranged properly.

Failure to properly route the antennas can result in degradation of the computer's WLAN

performance.

18. If you need to remove the WWAN antennas, remove the antenna cables from the clips (1) and

routing paths built into the display enclosure.

19. Lift the antennas (2) and cables (3) straight up out of the display enclosure.

CAUTION: When installing the display assembly, be sure that the wireless antenna cables are

routed and arranged properly.

Failure to properly route the antennas can result in degradation of the computer's WWAN

performance.

Reverse this procedure to reassemble and install the display assembly.

Component replacement procedures 117
