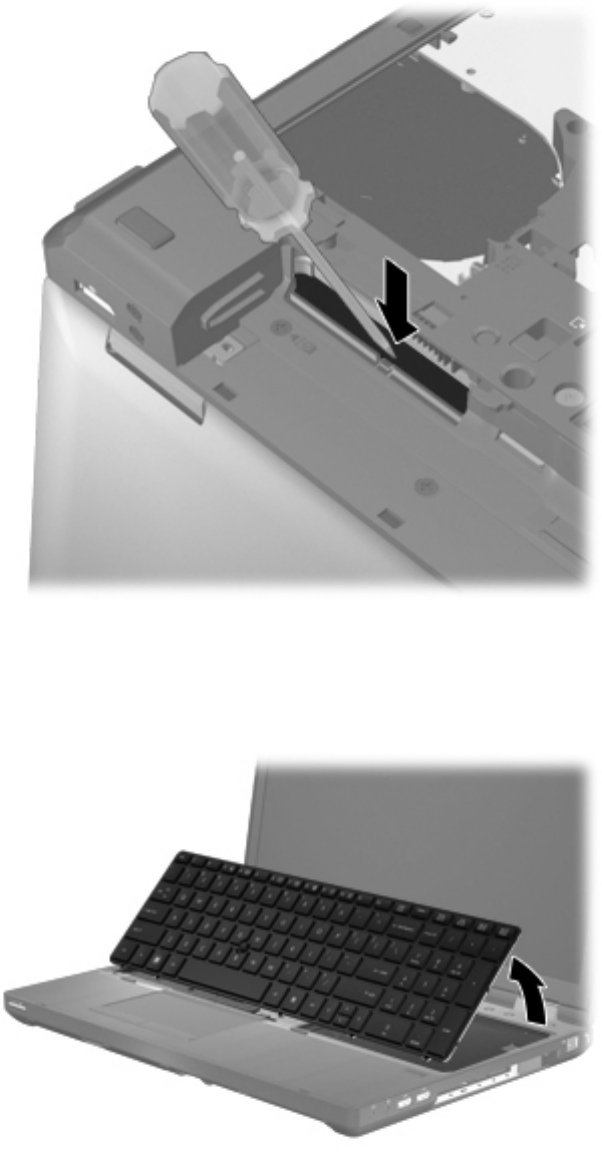

3. Using a screwdriver or similar too, press in the gap in the left side of the battery bay to

disengage the keyboard.

4. Position the computer right-side up with the front toward you.

5. Open the computer as far as possible.

6. Lift and rotate the keyboard upward to gain access to the cables.

7. Lift the keyboard connector latch (1), and then disconnect the keyboard cable from the system

board (2).

Component replacement procedures 93
