4 Replacement Procedures 4.8 Keyboard
4-28 [CONFIDENTIAL] Satellite A50S/TECRA A3X Maintenance Manual (960-534)
6. Remove the following screw fixing the keyboard support plate underneath the
keyboard.
? M2.5x8B THIN BIND screw x2
7. Remove the keyboard support plate.

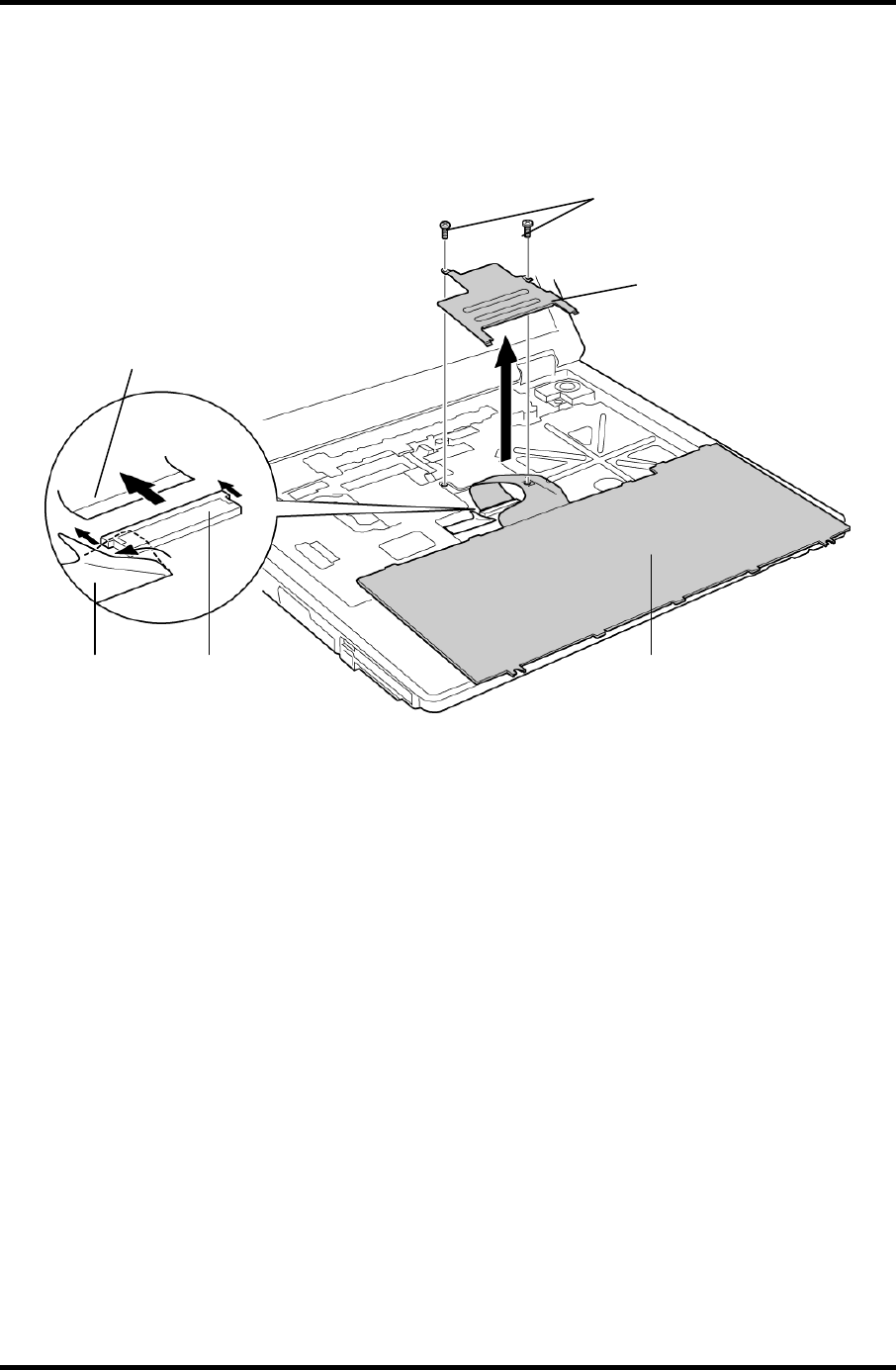

Figure 4-19 Removing Keyboard support plate
8. Peeling off the glass tape, unlock the connector and remove the keyboard flexible
cable from the connector CN3200 of the system board.
Keyboard support plate
CN3200
Keyboard Flexible Cable
Keyboard
M2
.5x8B THIN BIND
Glass tape
