No.3/16

(2) [Waveform Displayed as Relay Data] is added to the sampling data of register [ コ ]

[Waveform Displayed as Relay Data] is added to the sampling data of the register [ コ ] at the address

column of the sampling trace.

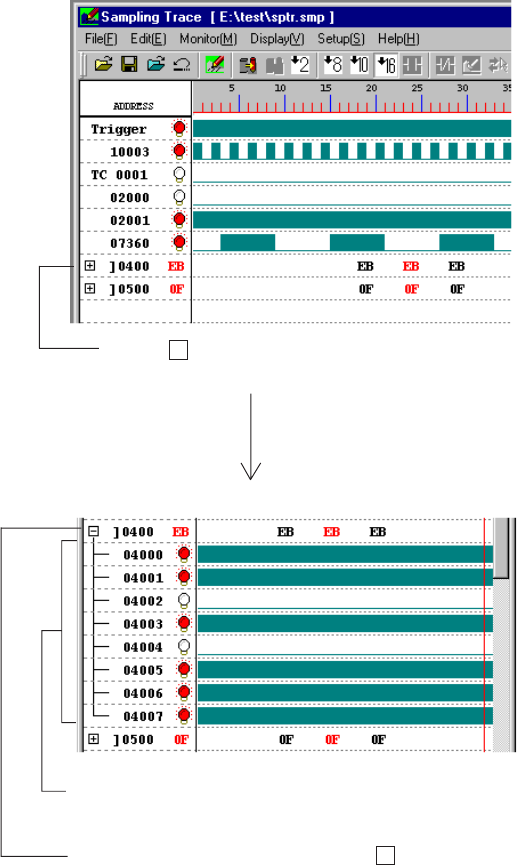

(Display and operation example)

Click on ＋ next to the register [ コ ].

A register data (displayed as a numerical value) is indicated as a relay data (displayed as

a waveform).

The above screen returns by clicking on −.
