IBX-530B-270 Embedded System

Page 2

1.1 IBX-530B-N270 Embedded System Overview

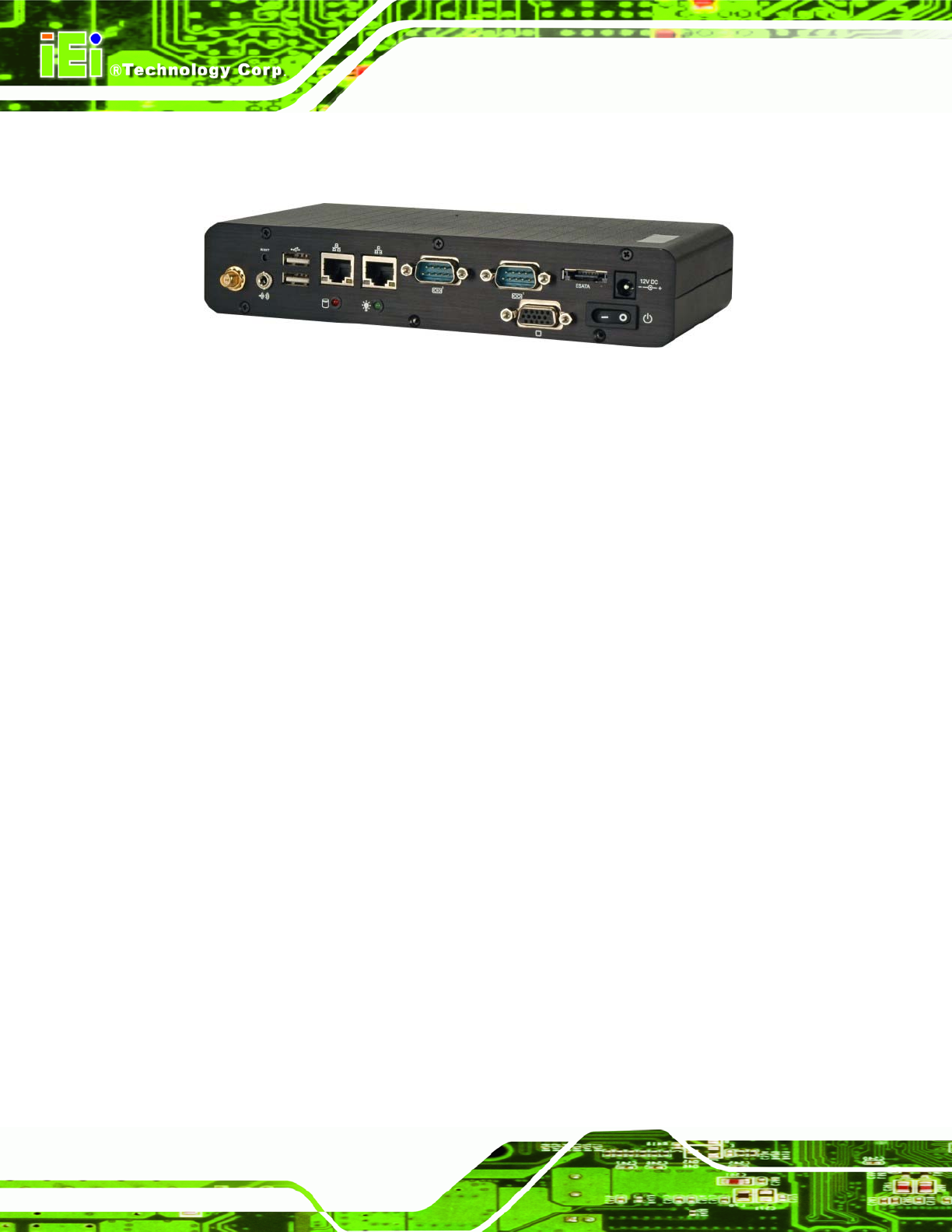

Figure 1-1: IBX-530B-N270 Embedded System

The IBX-530B-N270 is a 1.6 GHz Intel® Atom™ N270 based embedded solution. The

fanless motherboard has been optimized

for multimedia applications that require minimum

installation space. The AFLMB-

945GSE main board supports a full range of functions for an

AT/ATX-compatible industrial computer.

1.1.1 IBX-530B-N270 Benefits

The IBX-530B-N270 embedded system has the following benefits:

 Easy installation saves installation time

 Complete integration saves solution development time and cost

 Quick access CF storage card interface

 Compact size saves space

 Powerful preinstalled 1.6 GHz Intel® Atom™ N270 CPU and motherboard

ensures rigorous processing needs can be met

1.1.2 IBX-530B-N270 Features

The IBX-530B-N270 has the following features

 RoHS compliant design

 Fanless system

 1.6 GHz Intel® Atom™ CPU supported

 Dual GbE RJ-45 connectors supported

 One CompactFlash® Type I or Type II card supported
