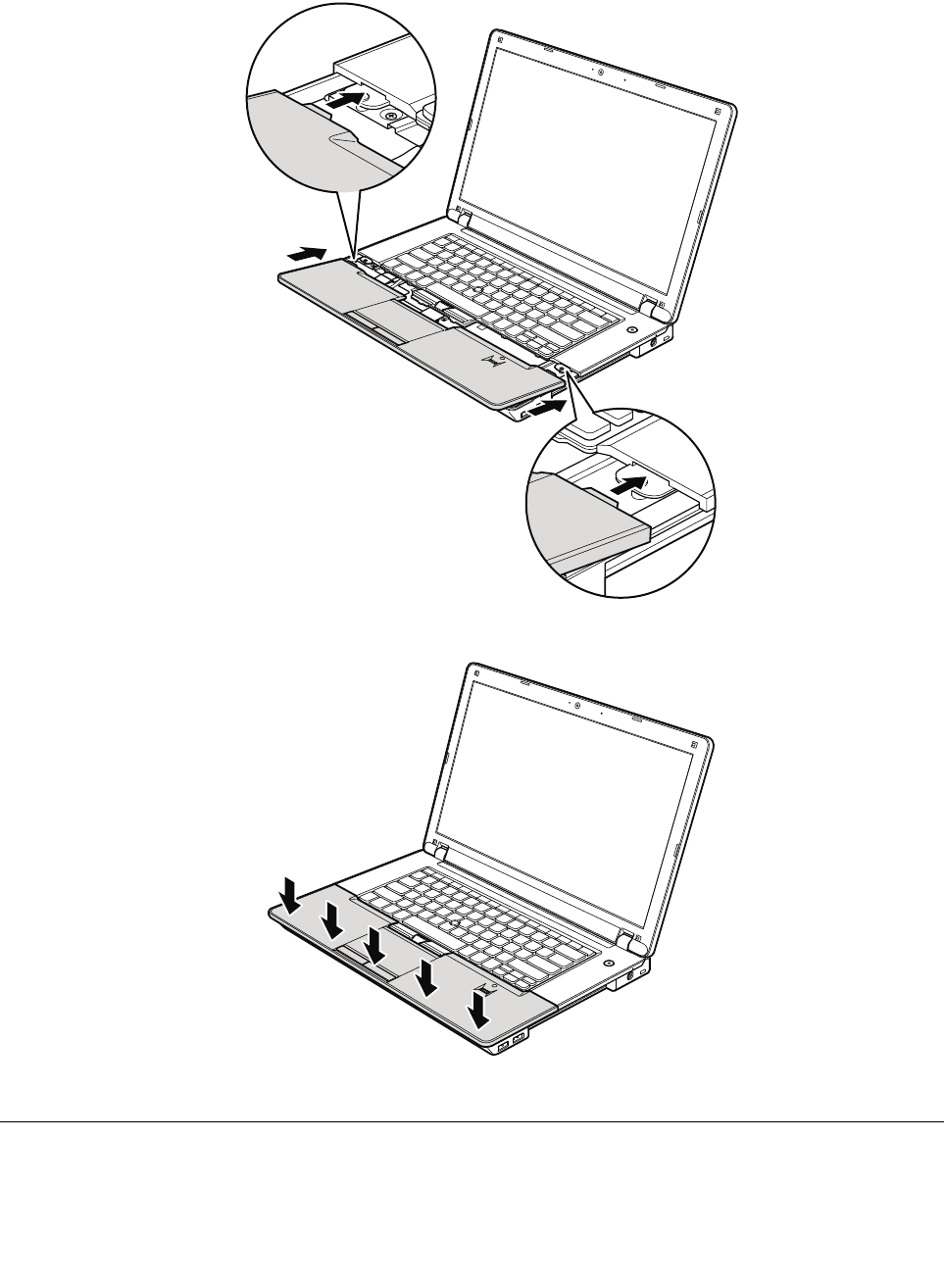

2.Attachthepalmrestsothatthetwosmallprojectionsofthepalmrestrmlytintotheguideholes
ofthekeyboardbezelasshowninthisgure.
3.Pushthefrontsideofthepalmrestuntilitclicksintoplace.
4.ClosetheLCDcoverandturnthecomputerover.Thenfastenthescrewstosecurethepalmrest.
1100PCIExpressMiniCardforwirelessLAN
Foraccess,removetheseFRUsinorder:
•“1010Batterypack”onpage58
72HardwareMaintenanceManual
