Optical drive (see

Optical drive on page 38)

d. Keyboard (see

Keyboard on page 47)

Base enclosure (see

Base enclosure on page 52)

f. System board (see

System board on page 65)

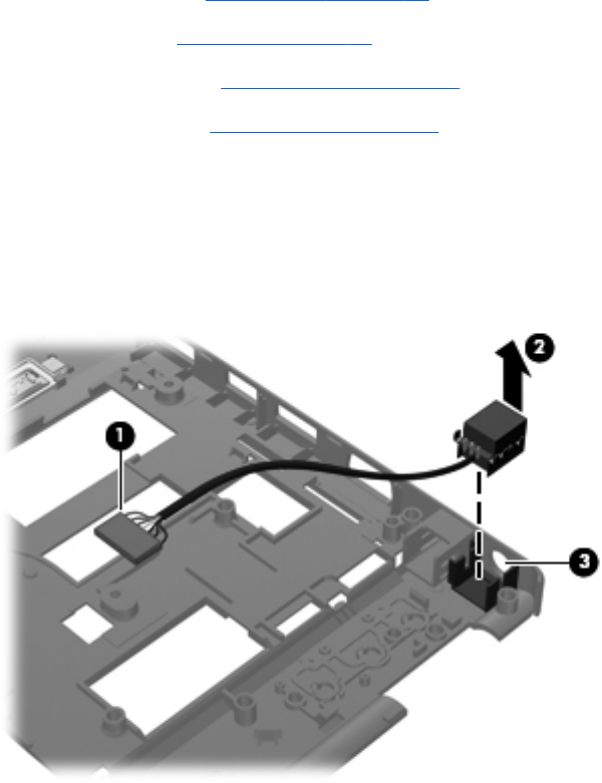

Remove the power connector cable:

1. Turn the top cover upside down, with the rear panel toward you.

2. Release the power connector cable (1) from the opening in the top cover.

3. Remove the power connector (2) from the clip (3) built into the top cover.

Reverse this procedure to install the power connector cable.

70 Chapter 4 Removal and replacement procedures
