5 Fuser unit error
• Do fuser errors occur right after power ON?
(A)
• Yes Is the heat roller thermister disconnected or generating a short circuit? (See Fig. 5-1)
(Approx. 190k-980k. in room temperature of 0-43 degrees Celsius.)
• Yes Replace the fuser unit.
▼
• No Is the back-up roller thermister disconnected or generating a short circuit? (See Fig. 5-1)
(Approx. 190k-980k. in room temperature of 0-43 degrees Celsius.)
• Yes Replace the fuser unit.
▼
• No
▼
• No Does a fuser unit error occur approx. three minutes after power ON?
• No Proceed to (A).
▼
• Is the heater in the fuser unit turned ON? (Is it hot?)
• Yes Replace the engine board.
▼
• No Replace the fuser unit.
▼
• No Is AC voltage output between CN1 connector pin 1 and pin 3 in the low-voltage power unit?
• No Replace the low-voltage power unit.
▼
• Yes Replace the fuser unit.

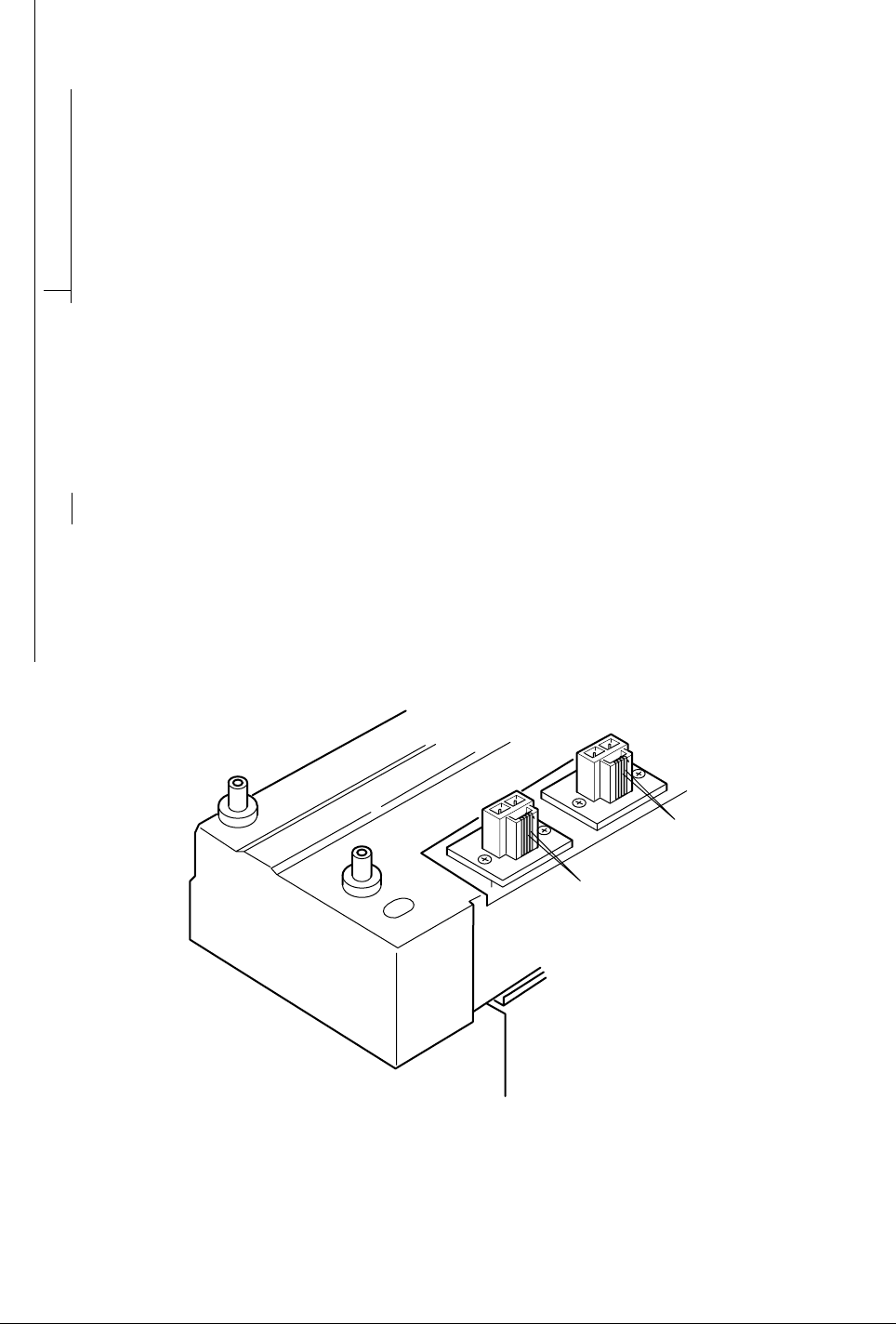

Figure 5.1
▼
Back-up roller thermister
Heat roller thermister
