MISFEED REMOVAL
2-23
2
10

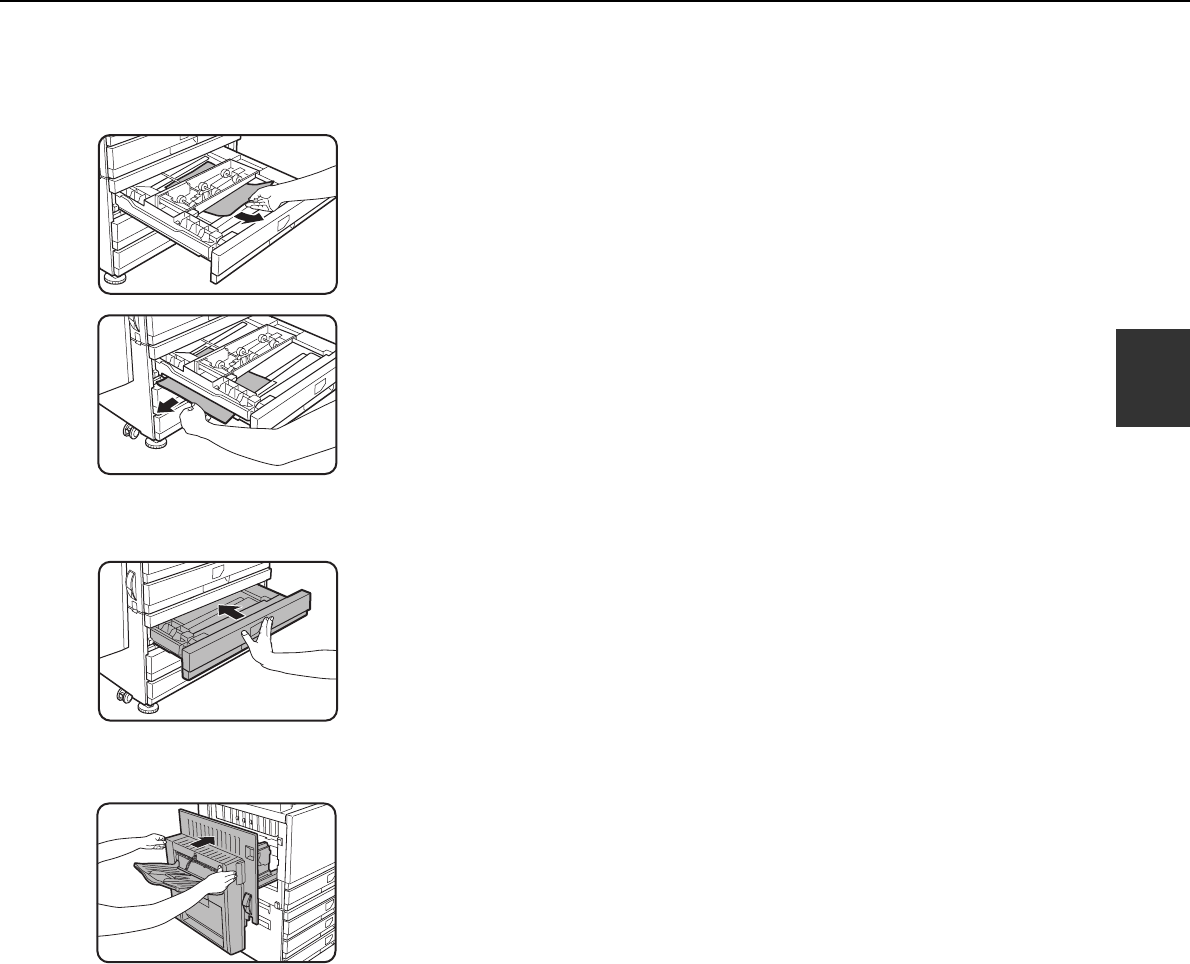

Remove the misfed paper from the duplex
module.
Be careful not to tear the
misfed paper during
removal.
11
Gently close the duplex module.
Push the tray firmly all
the way into the
machine.
12
Gently close the duplex bypass /inverter
unit.
■
■■
■ Misfeed in the upper or lower tray
To remove misfed paper from the upper tray or
lower tray, follow steps 1 through 5 of "Misfeed in
the stand/1 x 500 sheet paper drawer" on page 2-
21.
WhaleII_general-copy_SEC.book 23 ページ ２００４年９月１４日 火曜日 午前１１時４５分
